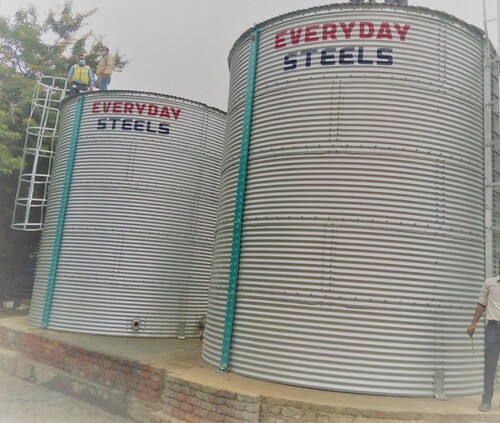

Zincalume Liquid Storage Tank

Name: Zincalume Liquid Storage Tank
Brand: EVERYDAY STEEL STORAGE PRIVATE LIMITED
Price: 3.5 INR
Availability: InStock

Price 3.5 INR/ Liter

Get a Price/Quote

MOQ : 10000 Liters

Zincalume Liquid Storage Tank Specification

Tensile Strength
550 MPa (approx.)

Foundation
Concrete Ring Beam/Foundation

Buttom Base
Flat/Slab Base

Grade
AZ150 or equivalent

Thickness
0.8 mm - 1.2 mm (customized as per design)

Color
White

Material
Zinc Aluminium

Metals Type
Zincalume Steel (Al-Zn coated steel)

Shape
Cylindrical

Volume (L)
Ranging from 10,000 Liters to 5,00,000 Liters and above

Size
Customizable as per requirement

Diameter
Up to 15 meters or as required

Surface Materials
Zincalume Steel Cladding

Wind Load Resistance
Designed as per IS 875 or equivalent

Maintenance Requirement
Low

Roof Type
Available in Covered or Open Top

Leak Proof Design
Yes, with EPDM/Synthetic Sealant

Coating Type
Aluminium-Zinc Alloy Coated

Corrosion Resistance
Excellent (up to 4 times better than galvanized steel)

Manufacturing Standard
IS 15961, AS 1397, or similar international standards

Temperature Resistance
Up to 80C

Installation Method
Bolted Construction (Modular)

Application
Suitable for Potable Water, Waste Water, Industrial Liquids, Rainwater Harvesting, and Fire Reservoirs

Internal Liner Option
PVC/LDPE/EPDM (if required for liquid compatibility)

Lifespan
20-30 Years (subject to maintenance)

Zincalume Liquid Storage Tank Trade Information

Minimum Order Quantity
10000 Liters

Supply Ability
500 Liters Per Month

Delivery Time
7-10 Days

About Zincalume Liquid Storage Tank

Specification

Complete Tank : AS 2304-2011, Australian Standard for Water Storage Tanks for Fire protection. ANSI/AWWA D103-09, NFPA-22
Tank Structure : AS /NZS 1170-2007
Inner Liner : ANSI/NSF 61-2008 (American)/IS : 9845
Roof : AS/NZS 1170-2007, 4100, 4600
Platforms & Ladders : AS 1657-1992
Cathode Protection : AS/NZS 4680-2006 (when installed on sand bed)
Nozzles : AS/NZS 4680-2006
Tata-Blue scope Zincalume sheets : IS :15961, ASTM A 792M, AS1397, ISO 9364
HDG-IS : 2629,2633, 6745,4759
Wind Load : designed for 150 kmph (IS: 875)
Seismic Load : designed for Zone V (IS: 1893)

Superior Corrosion Resistance

Zincalume tanks are built using aluminium-zinc alloy coated steel (Grade AZ150 or equivalent), providing up to four times more corrosion resistance than standard galvanized tanks. This makes them suitable for challenging environments and long-term liquid storage, including potable and industrial needs.

Flexible Design and Installation

Thanks to their bolted modular construction, Zincalume storage tanks can be easily customized in diameter (up to 15 meters) and volume. The flat/slab base and concrete ring beam foundation ensure outstanding stability and adaptability for diverse applications.

Versatile Applications

Zincalume tanks are engineered for a broad range of uses-potable water, wastewater, industrial liquids, rainwater harvesting, and emergency fire reservoirs. Their temperature tolerance (up to 80C) and optional internal liners (PVC, LDPE, EPDM) assure liquid compatibility.

FAQ's of Zincalume Liquid Storage Tank:

Q: How is a Zincalume liquid storage tank installed?

A: These tanks use a modular bolted construction method, allowing rapid on-site assembly without the need for heavy fabrication equipment. Foundations typically require a concrete ring beam, and installation is straightforward due to the prefabricated cladding and components.

Q: What makes Zincalume tanks more corrosion-resistant than regular galvanized steel tanks?

A: Zincalume tanks use an aluminium-zinc alloy coating which protects steel surfaces far more effectively than traditional galvanizing. This multi-layered barrier shields against rust and corrosion, granting the tank up to four times the lifespan of standard galvanized alternatives.

Q: When should I use a covered versus an open top Zincalume tank?

A: A covered top is preferred for storing potable water or whenever contamination control is critical, whereas an open top design is suitable for industrial or fire reservoir applications where fast and frequent access is needed.

Q: Where can Zincalume liquid storage tanks be used?

A: These tanks are suitable for a variety of environments, including municipal and industrial sites, agricultural facilities, manufacturing plants, and remote areas requiring water storage. Their robust design allows use across India and globally, wherever durable liquid containment is required.

Q: What is the maintenance requirement for Zincalume liquid storage tanks?

A: Maintenance needs are low thanks to the advanced coating and high tensile strength of the material. Routine inspection of the sealants, fasteners, and internal liner (if installed) ensures optimal tank performance and longevity.

Q: How is leak prevention ensured in Zincalume tanks?

A: Tanks are equipped with EPDM or synthetic sealants at all bolted joints, delivering dependable leak-proof performance. Optional internal liners further enhance containment for specialized liquids if required for compatibility.

Q: What are the benefits of using Zincalume tanks for water storage?

A: Their corrosion resistance, modularity, custom sizing options, and compliance with international standards make Zincalume tanks a long-lasting, cost-effective, and safe choice for various water and liquid storage needs.
